Pass Box

Pass Box

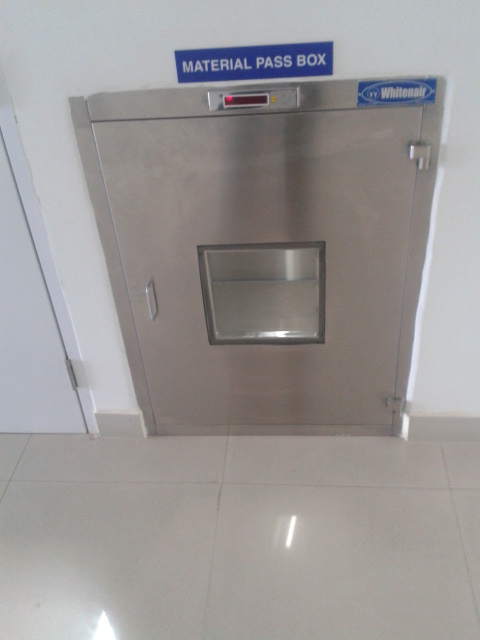

Whitenair Pass boxes are designed for controlling the ingress of particulate contamination in to clean room and other controlled environment in order to maintain the integrity of products and process. Personal traffic is the most important factor which must be controlled. Whitenair Pass boxes are an effective solution as they allow material to be transferred in to the controlled Area without actual personal movement

Whitenair  Pass boxes are available in various sizes and  configuration

A)     Static Pass Box

B)    Dynamic pass box

C)    Air shower Pass Box

A)    Static Pass Box.

Whitenair  Static pass boxes are an easy to clean hermetically sealed enclosure to prevent cross contamination by ensuring that only one door at a time can open. The moment  a door is opened, the other door catch to lock out the opposing door. The highly reliable inter locking design is rated for thousands of trouble free operations.

They are available in SS 316 grade, SS 304, EPCGI and combination of EPCGI and SS, to suit Wall Mounting and Floor mounting

        Dimensional Chart Wall Mounted Static Pass Box:

Model  No	External Working Area			Internal Working Area
	W	D	H	W1	D1	H1
W SPB 45	570	530	560	450	450	400
W SPB 60	720	680	760	600	600	600
W SPB 62	740	680	860	620	600	700
W SPB 80	920	980	1160	800	900	1000
W SPB 100/6	1120	680	960	1000	600	800
W SPB 100/10	1120	1080	1160	1000	1000	1000
*All Dimensions are in mm  **Custom sizes available on request



Model  No	External Working Area			Internal Working Area
	W	D	H	W1	D1	H1
W SPB 80	920	980	1160	800	900	1000
W SPB 100	1120	1080	1160	1000	1000	1000
W SPB 120	1320	1280	1660	1200	1200	1500
*All Dimensions are in mm  **Custom sizes available on request

 Dimensional Chart Floor Mounted Static Pass Box:

B)    Dynamic Pass Box.

 These unique type pass boxes are designed for an Ultra clean Environment of ISO class 3or ISO class 5 , along with  the features of Static Pass box to prevent both cross contamination & Contamination . All the components of these chambers have been engineered to optimize cleanliness and simplify disinfection. The closed loop circulation design directs contaminated air downward through side hollow walls and back to the filter which removes 99.99% of particles less than 0.3 micron sizes.

Model  No	External Working Area			Internal Working Area
	W	D	H	W1	D1	H1
W DPB 60	720	680	1350	600	600	600
W DPB 70	820	680	1800	700	600	1050
W DPB 90	1020	680	1850	900	900	1100
*All Dimensions are in mm  **Custom sizes available on request

      Dimensional Chart Wall Mounted Dynamic Pass Box:

Dimensional Chart Floor Mounted Dynamic Pass Box:

Model  No	External Working Area			Internal Working Area
	W	D	H	W1	D1	H1
W DPB 80	1120	1080	1750	1000	1000	1000
W DPB 100	1320	1080	1950	1200	1000	1200
W DPB 120	1620	1280	2250	1500	1200	1500
*All Dimensions are in mm  **Custom sizes available on request

C)   Air Shower Pass Box

Whitenair Air shower offers an effective way to remove surface deposited particles on carts/ containers as you transfer them in to the clean Room. Adjustable  nozzles provide concentrated streams of high velocity HEPA filtered air that lifts off contaminants which are purged through vents along  the bottom of the camber. Nozzles are arranged  uniformaly on wall to ensure effective distribution of filtered air.The closed loop circulation design directs contaminated air downward through grills and hollow walls of the air shower and back to the HEPA filter, which removes 99.99 % of all particles of 0.3 microns and above.Inter locking doors prevent un necessary contamination in flow thus prevent cross contamination of the clean room.

Model  No	External Working Area			Internal Working Area
	W	D	H	W1	D1	H1
W DPB 80	1320	1080	1900	1000	1000	1000
W DPB 100	1520	1080	1800	1200	1000	1200
W DPB 120	1820	1280	2400	1500	1200	1500
*All Dimensions are in mm  **Custom sizes available on request

     Dimensional chart of Air Shower pass Box



  Key benefits:

1)     Seamless: Unique design eliminates cracks, corners and other contaminant traps

2)     Lipless: Easy material transfer with no clearance obstruction.

3)     Easy to clean: Ultra smooth internal surface.

4)     Easy to sterilizer: 304/316 grade Stain less steel.

5)     Double wall sealed construction: adds rigidity and houses interlock and std utility without compromising the ultra clean design.

Features

·         Microprocessor based control system with status Indicator

·         Powerful Electromagnetic Inter locking

·         Continuous-seam interiors create a hermetically sealed chamber with no cracks or crevice

·         304 stainless steel can be disinfected with common disinfectants(316 SS available)

·         One-piece , heat-formed Santorin gasket will not creep , deform, outgas like adhesive “weather-striping” style gaskets

·         Choose among several interlock designs

·         Available in Static and dynamic Versions
